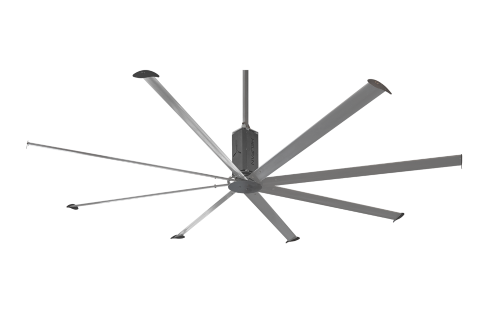

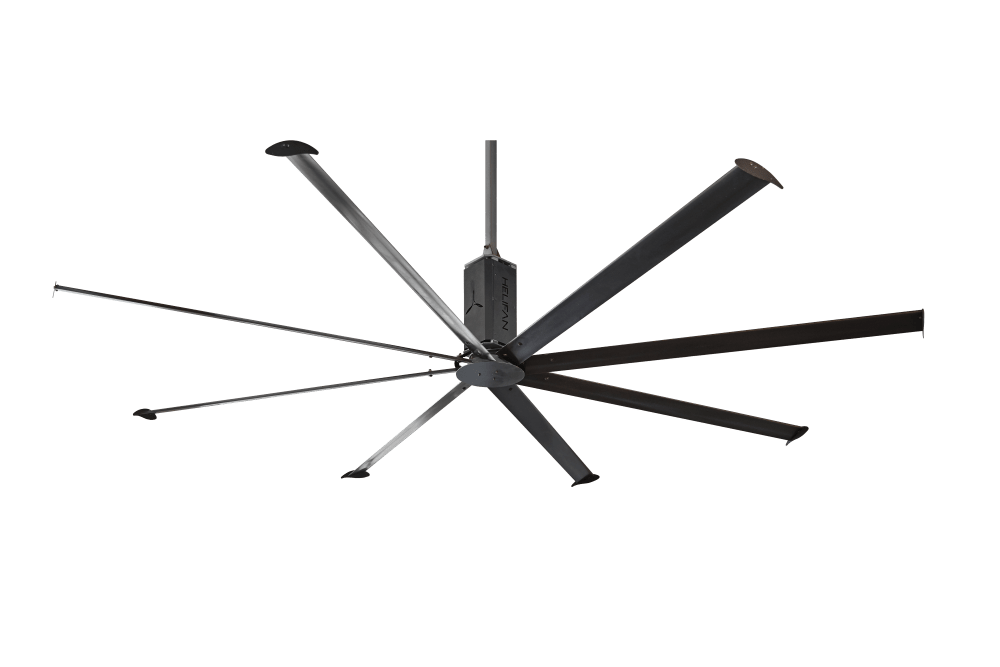

HELI-series Ceiling Fan

HELI-series Ceiling Fans are the perfect solution for high ceiling facilities. Delivering unmatched airflow to places like warehouses, aviation hangars, sports halls and convention centres, HELI-series Ceiling fans offer controlled and cooling airflow to any space.

Available in sizes from 8 to 24 feet, HELI-series Ceiling fans provide energy efficient air movements for your comfort.

Description & Features

  1. Quiet & energy saving
  2. Highly efficient air flow
  3. Moves 20 times more volume than normal ceiling fans
  4. Designed to withstand hanging from ceilings or beams

Design

  1. 8 sturdy T6 Aluminium air foil blades
  2. Premium aerodynamic designed blades

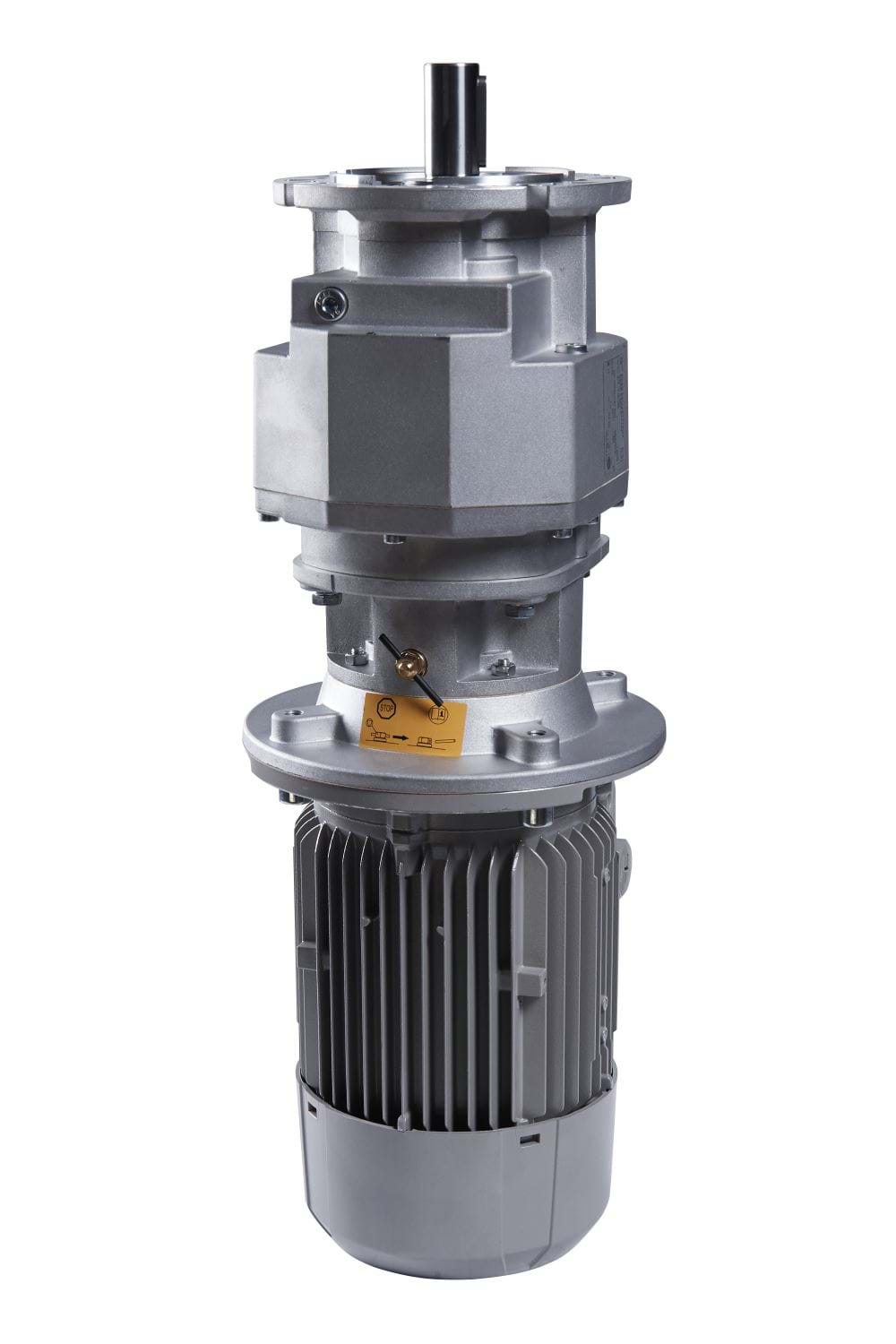

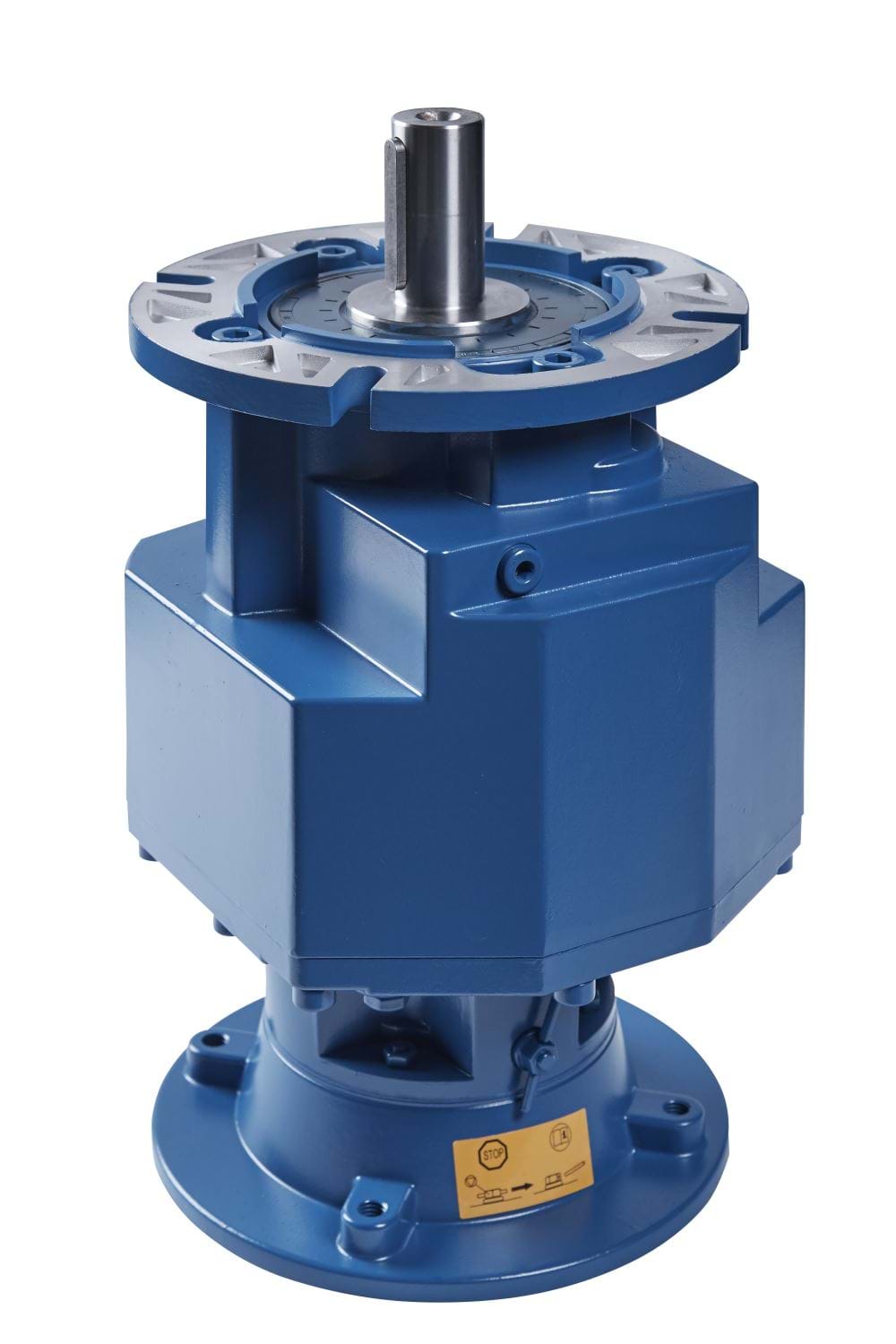

  3. World class helical gear box
  4. High energy-efficient motor with IE2 standard

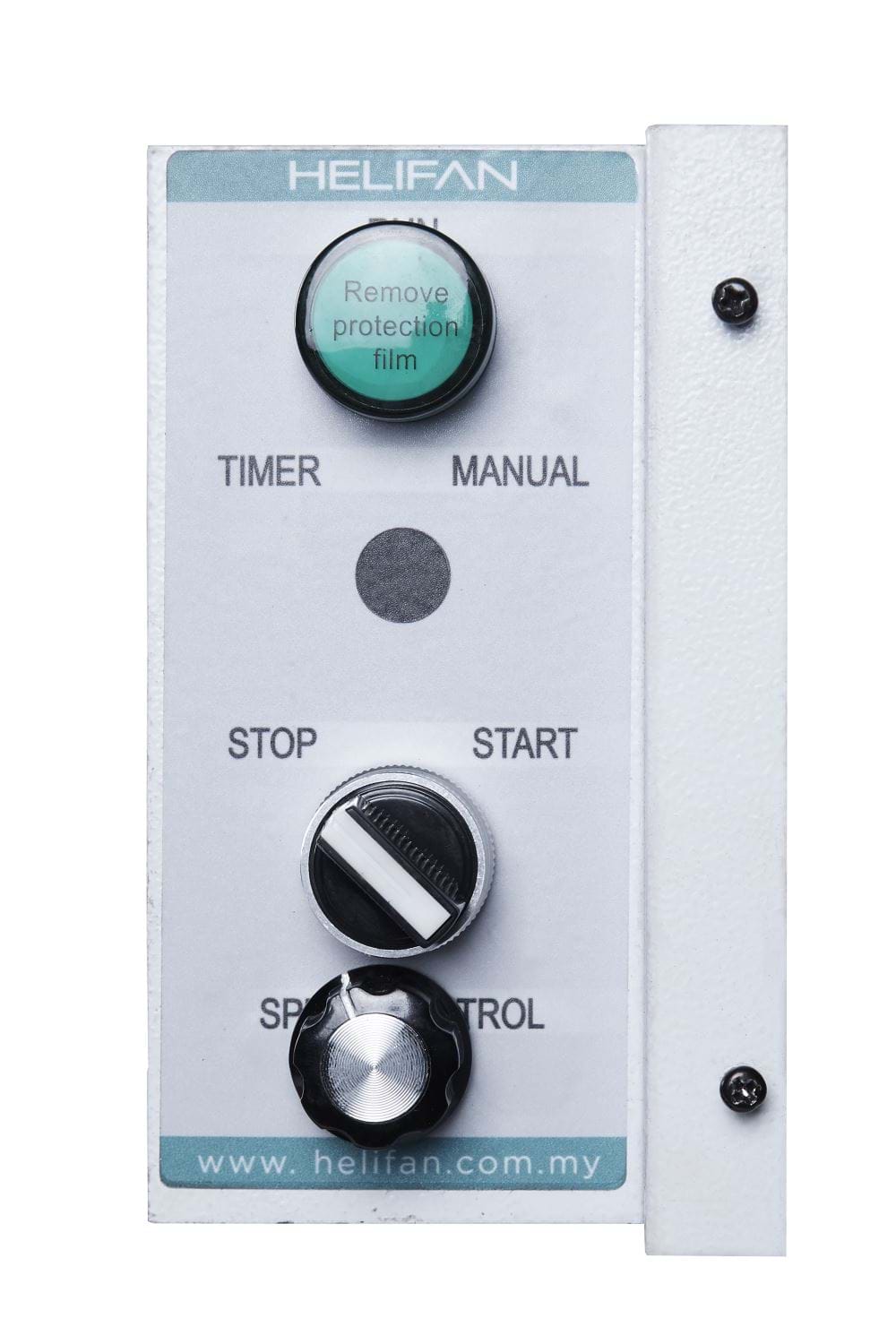

  5. Control box with Timer for easy control

Safety Features

  1. Cable hidden through the bracket
  2. Four stabilisation cable
  3. pieces of safety clips connected to each blade

COLOUR CUSTOMISATION

SAFETY FEATURES

  1. CABLE HIDDEN THROUGH THE BRACKET
  2. FOUR STABILISATION CABLE
  3. PIECES OF SAFETY CLIPS CONNECTED TO EACH BLADE

TECHNICAL SPECIFICATIONS

MODEL NO
HELI-14
HELI-16
HELI-18
HELI-20
HELI-22
HELI-24
DIAMETER
14FT
(4.3M)
16FT
(4.9M)
18FT
(5.5M)
20FT
(6.1M)
22FT
(6.7M)
24FT
(7.3M)
APPROXIMATELY COVERAGE AREA (M²)
700M²
800M²
900M²
1,100M²
1,300M²
1,500M²
MAX.POWER USAGE
0.75KW
0.75KW
1.5KW
1.5KW
1.5KW
1.5KW
EQUIVALENT HORSEPOWER RATING
1.0 HP
1.0 HP
2.0 HP
2.0 HP
2.0 HP
2.0 HP
TOTAL HANGING WEIGHT (FAN WEIGHT)
57 KG
60 KG
90 KG
100 KG
110 KG
120 KG
