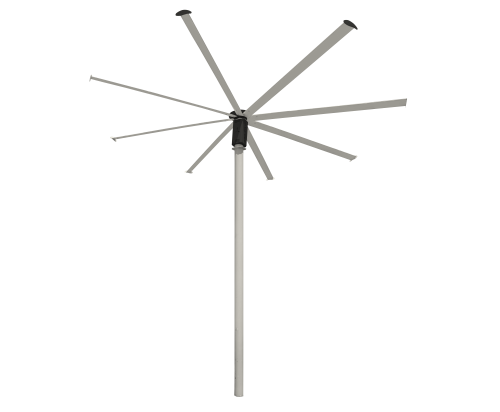

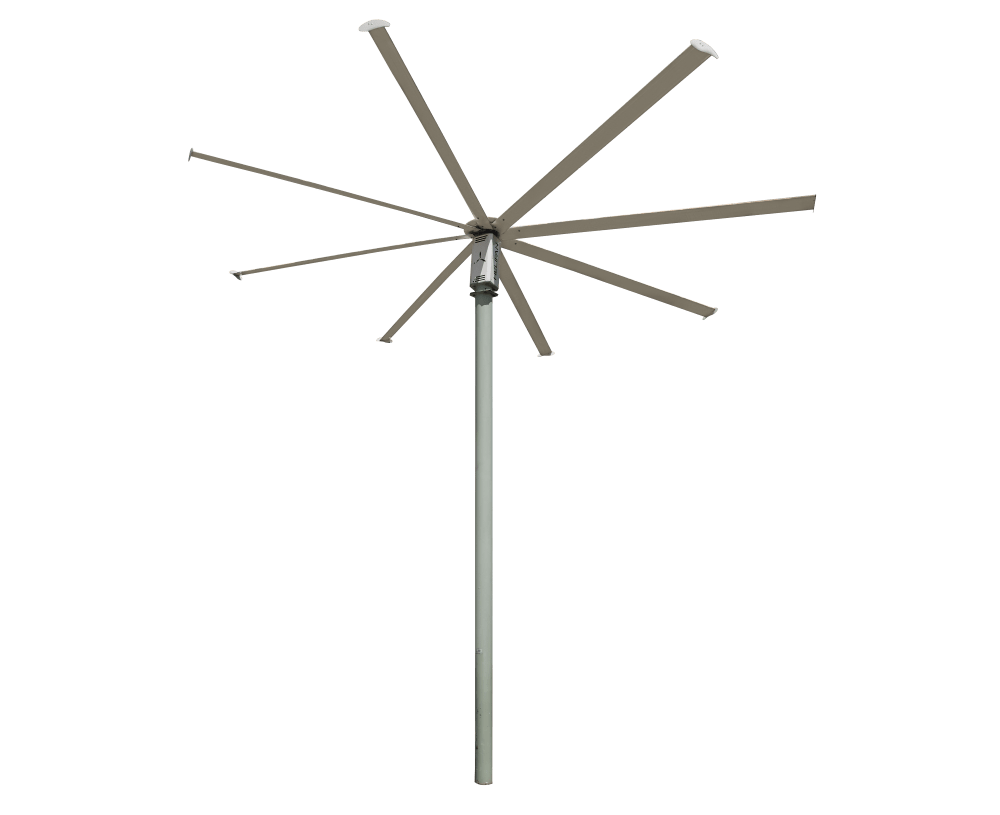

HELI-series Standing Fan

Open spaces will never be the same again with our HELI-series Standing Fans. By increasing movement and cooling the humid air, our standing fans offers relief from the scorching temperatures of tropical climate. Our standing fans are the perfect outdoor solution for any open spaces like theme parks, courtyards, gardens and public parks. Come rain or shine, Helifan will be there to cool you down.

Available in sizes from 8 to 24 feet, HELI-series Ceiling fans provide energy efficient air movements for your comfort.

Description & Features

  1. Quiet & energy saving
  2. Highly efficient air flow
  3. Able to be installed where no ceilings available
  4. Designed to be weather-proof and sturdy

Design

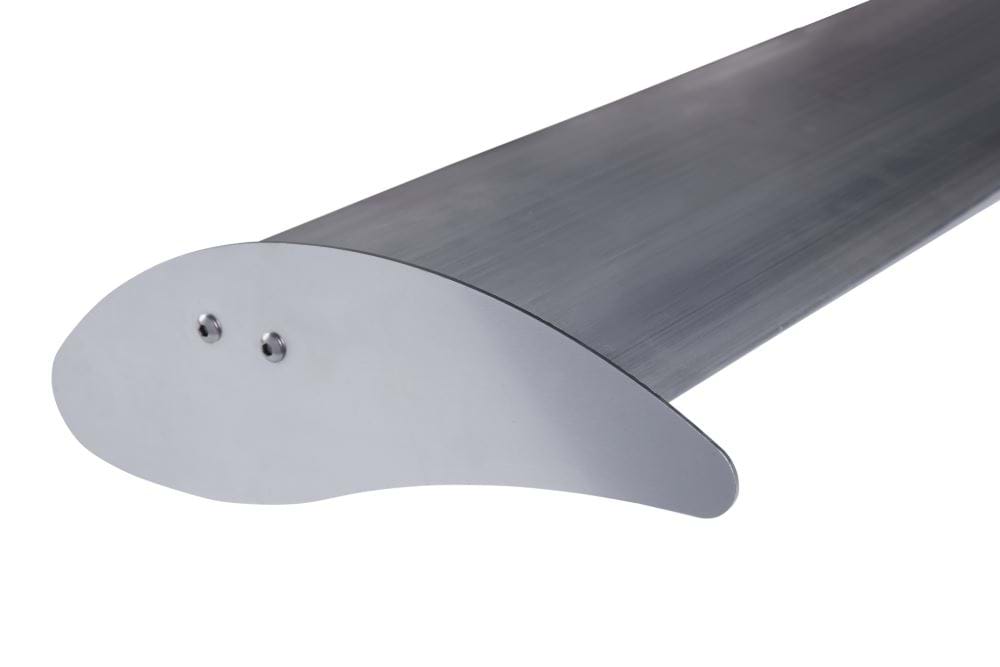

  1. 8 sturdy T6 Aluminium air foil blades
  2. Premium aerodynamic designed blades

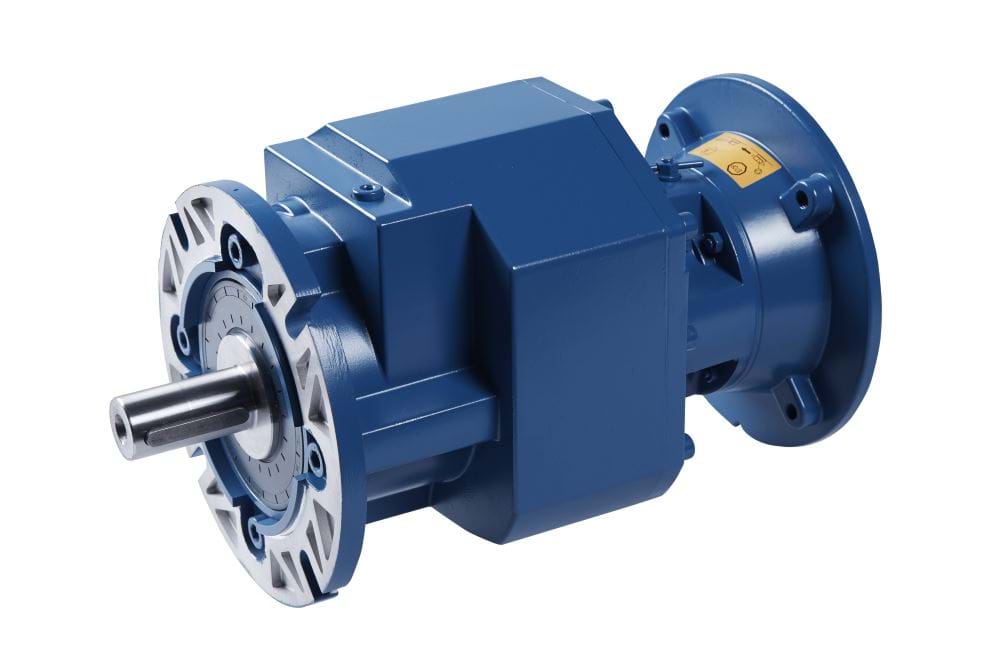

  3. World class helical gear box

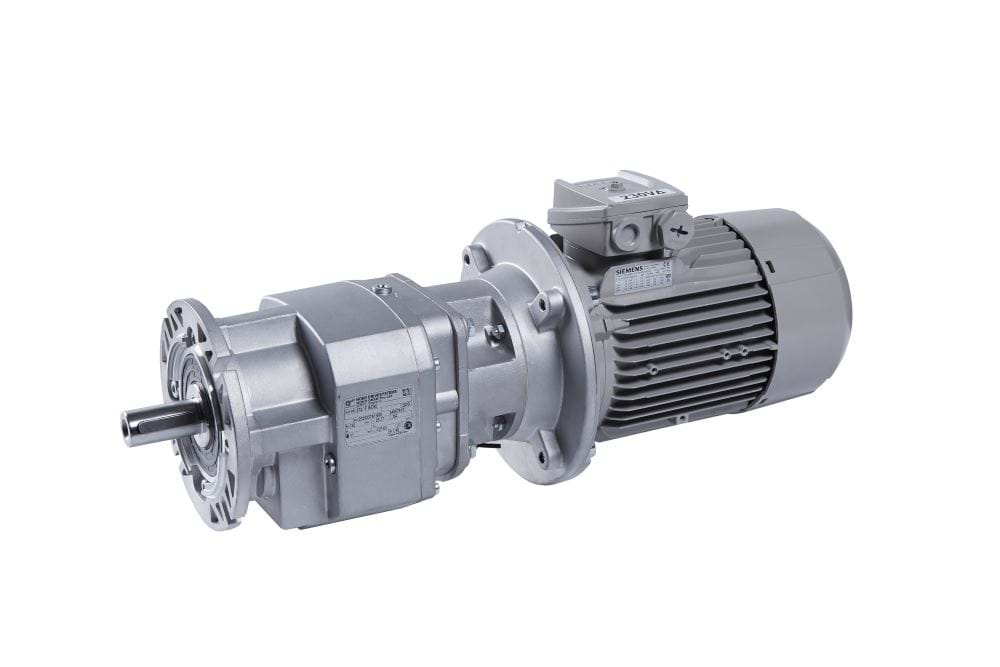

  4. High energy-efficient motor with IE2 standard
  5. Control box with Timer for easy control

COLOUR CUSTOMISATION

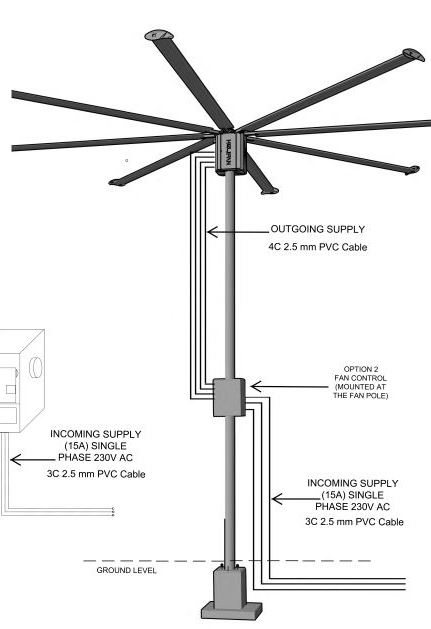

SAFETY FEATURES

  1. EARTHING CABLE TO DISCHARGE ELECTRICAL SURGES
  2. MOTOR BOLTED TO POLE FOR SECURITY
  3. PIECES OF SAFETY CLIPS CONNECTED TO EACH BLADE

TECHNICAL SPECIFICATIONS

MODEL NO
HELI-14
HELI-16
HELI-18
HELI-20
HELI-22
HELI-24
DIAMETER
14FT
(4.3M)
16FT
(4.9M)
18FT
(5.5M)
20FT
(6.1M)
22FT
(6.7M)
24FT
(7.3M)
APPROXIMATELY COVERAGE AREA (M²)
700M²
800M²
900M²
1,100M²
1,300M²
1,500M²
MAX.POWER USAGE
0.75KW
0.75KW
1.5KW
1.5KW
1.5KW
1.5KW
EQUIVALENT HORSEPOWER RATING
1.0 HP
1.0 HP
2.0 HP
2.0 HP
2.0 HP
2.0 HP
TOTAL HANGING WEIGHT (FAN WEIGHT)
57 KG
60 KG
90 KG
100 KG
110 KG
120 KG
