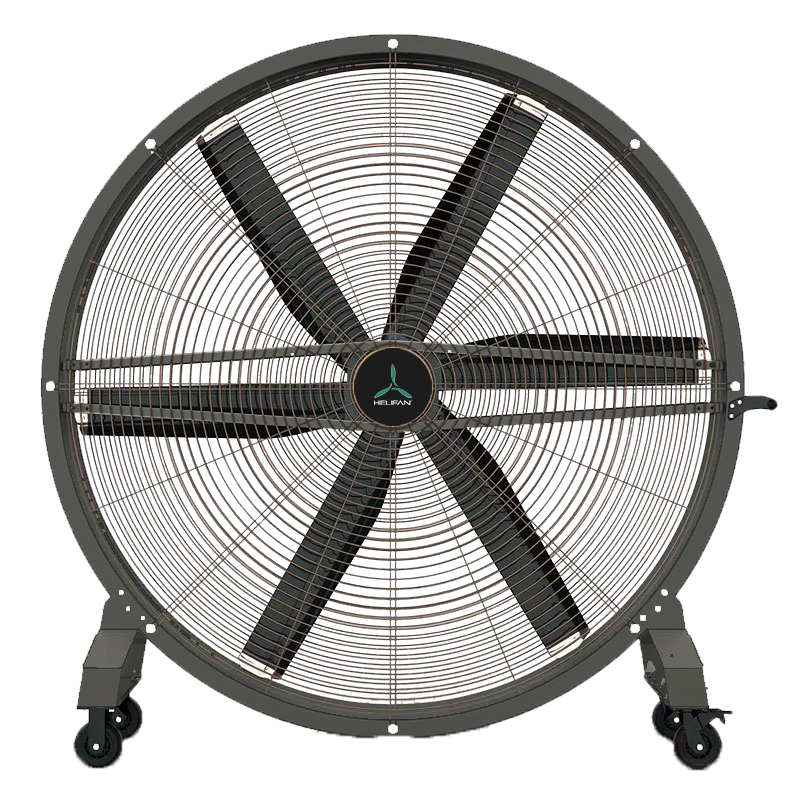

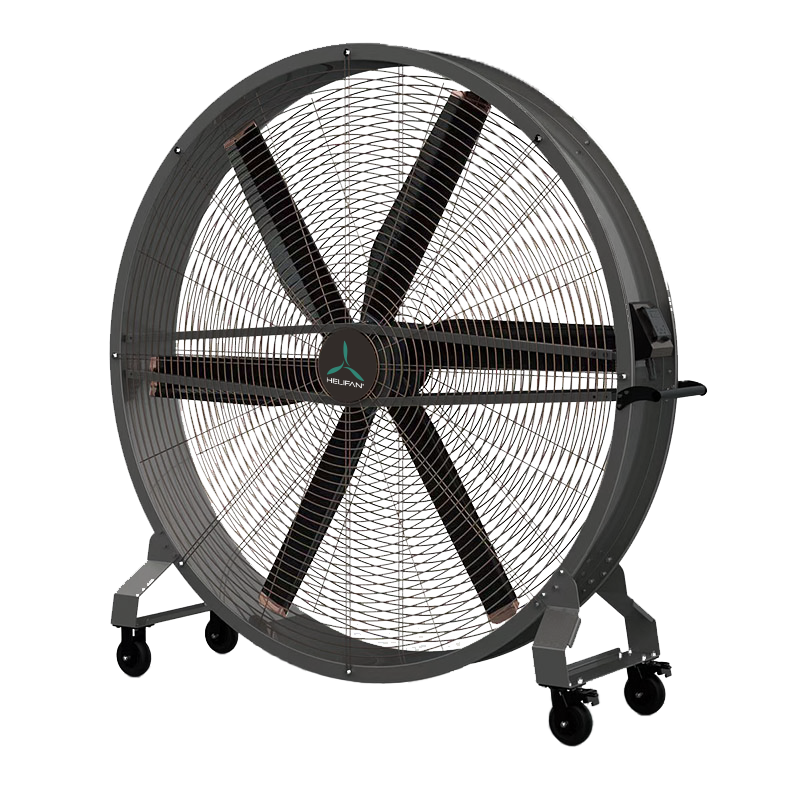

Moveable Fan Series

Introducing Moveable Fan, a revolutionary product crafted to enhance workplace comfort. Featuring a self-designed variable frequency speed control and powered by a high-efficiency, energy-saving permanent magnet external rotor motor, it offers unparalleled performance. With its low noise operation, compact structure, and sleek design, Moveable Fan ensures a productive and pleasant working environment. Say goodbye to discomfort and hello to efficiency with Moveable Fan.

Description & Features

  1. Quiet & energy saving
  2. VARIABLE SPEED & NATURAL WIND
  3. COMPACT STURCTURE & EASY TO MOVE
  4. 1M~6M/S WIND SPEED RANGE AND 28M MAXIMUM BLOWING DISTANCE

Design

  1. 1~2M BLADE DIAMETER
  2. PERMANENT MAGNET SYNCHRONOUS MOTOR
  3. STREAMLINED FAN BLADE + ENERGY SAVING TAIL
  4. AIRFOIL INTERNAL REINFORCEMENT STRUCTURE

Safety Features

SMART CONTROL SYSTEM WITH ABNORMAL POWER PROTECTION

  1. OVERVOLTAGE/UNDERVOLTAGE
  2. OVERHEATING
  3. LIGHTNING

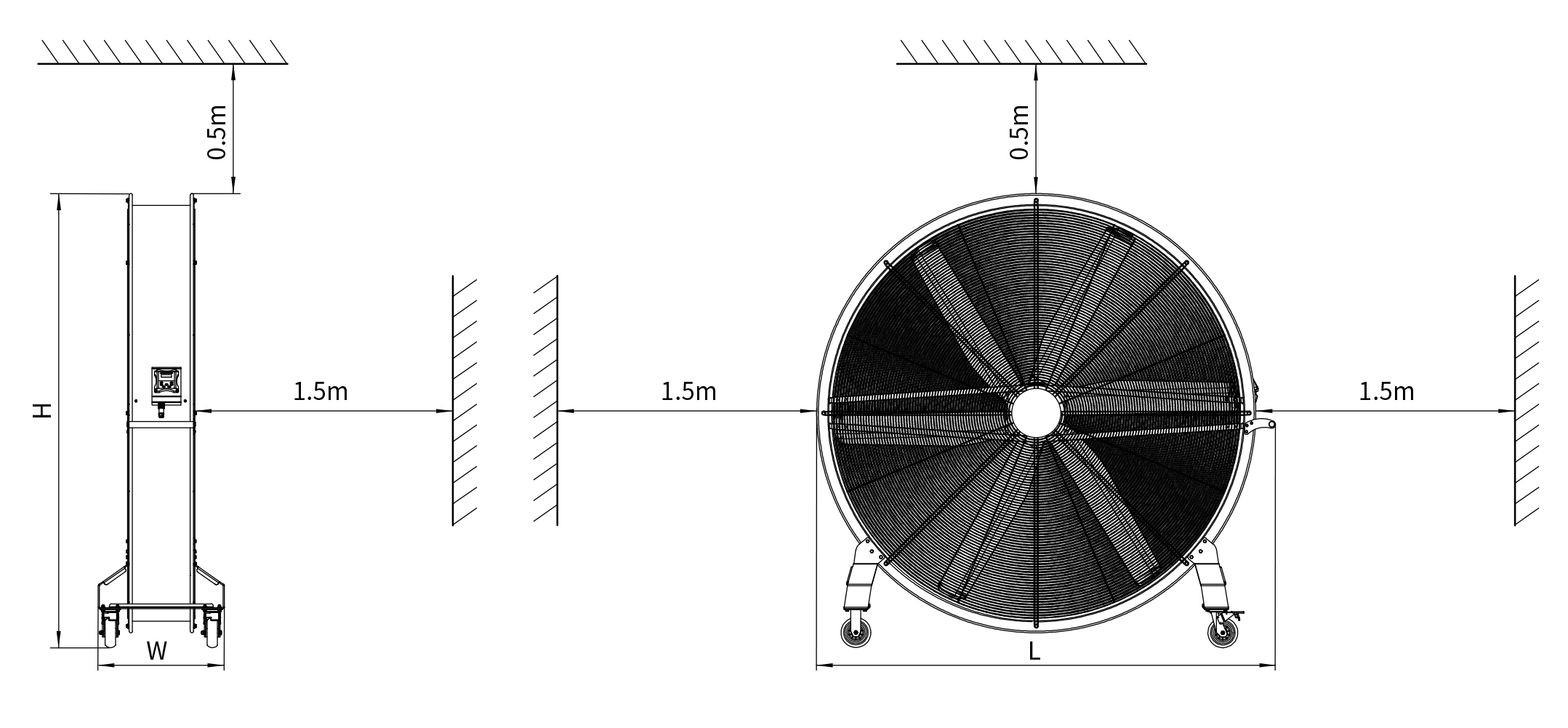

PLACEMENT ENVIRONMENT

TECHNICAL SPECIFICATIONS

MODEL NO
HDY-23-32
HDY-1.5-32
HDY-1-32
DIAMETER(m)
2
1.5
1
VOLTAGE(v)
220/380;
220/380;
220/380;
FREQUENCY(Hz)
50/60
50/60
50/60
POWER(kW)
1
0.75
0.55
ROTATING SPEED(rpm)
≤300
≤420
≤600
AIR SPEED(m/s)
1-5.5
1-6.5
1-7
AIRFLOW(m³/h)
80000
55000
30000
WEIGHT(kg)
122
93
45
NOISE(dB)
39
39
39
COVERAGE(²)
260
150
80

TECHNICAL SPECIFICATIONS

MODEL NO
HDY-23-32
HDY-1.5-32
HDY-1-32
L(cm)
222
172
122
W(cm)
61
60
50
H(cm)
219
169
119
